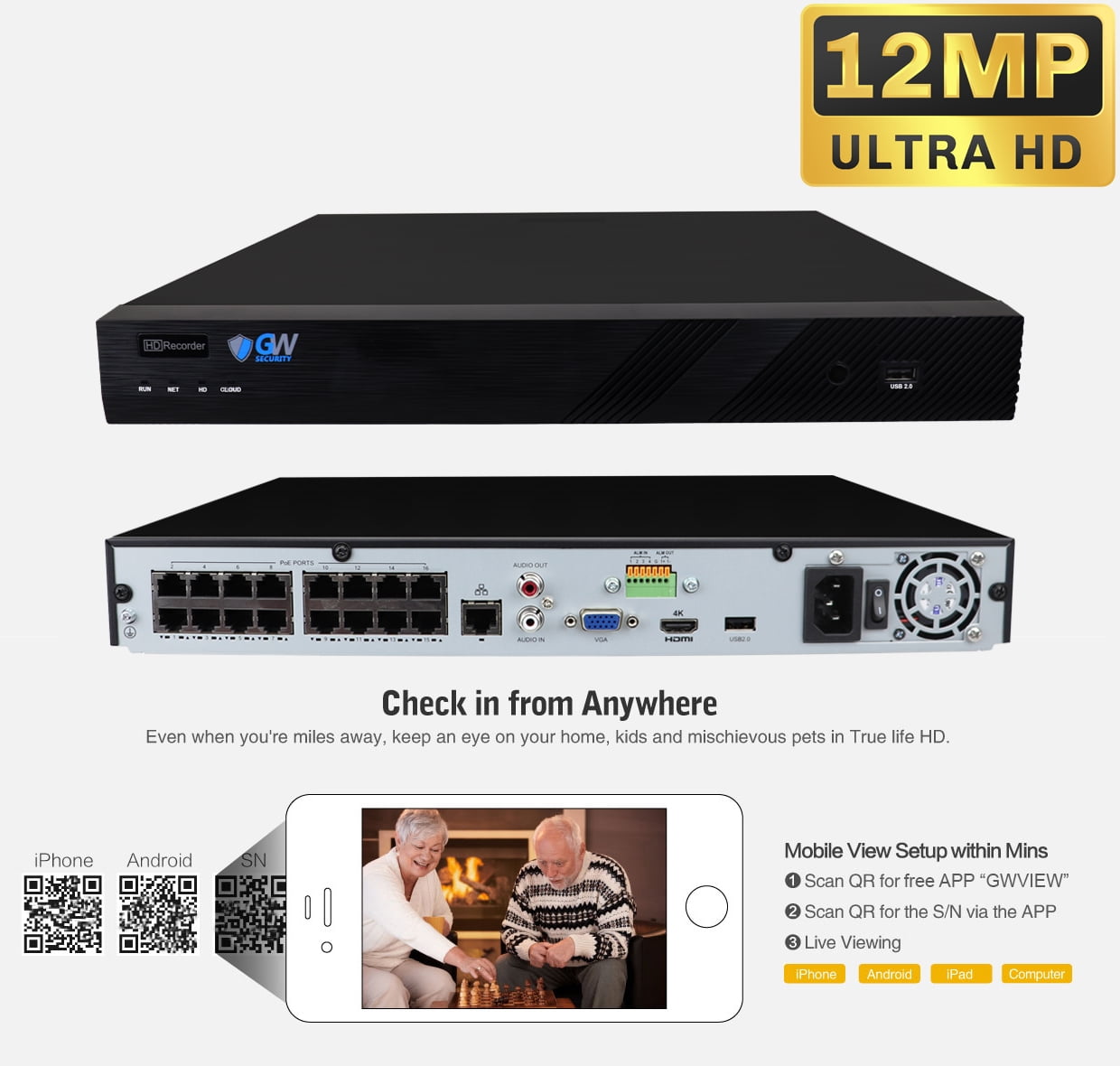

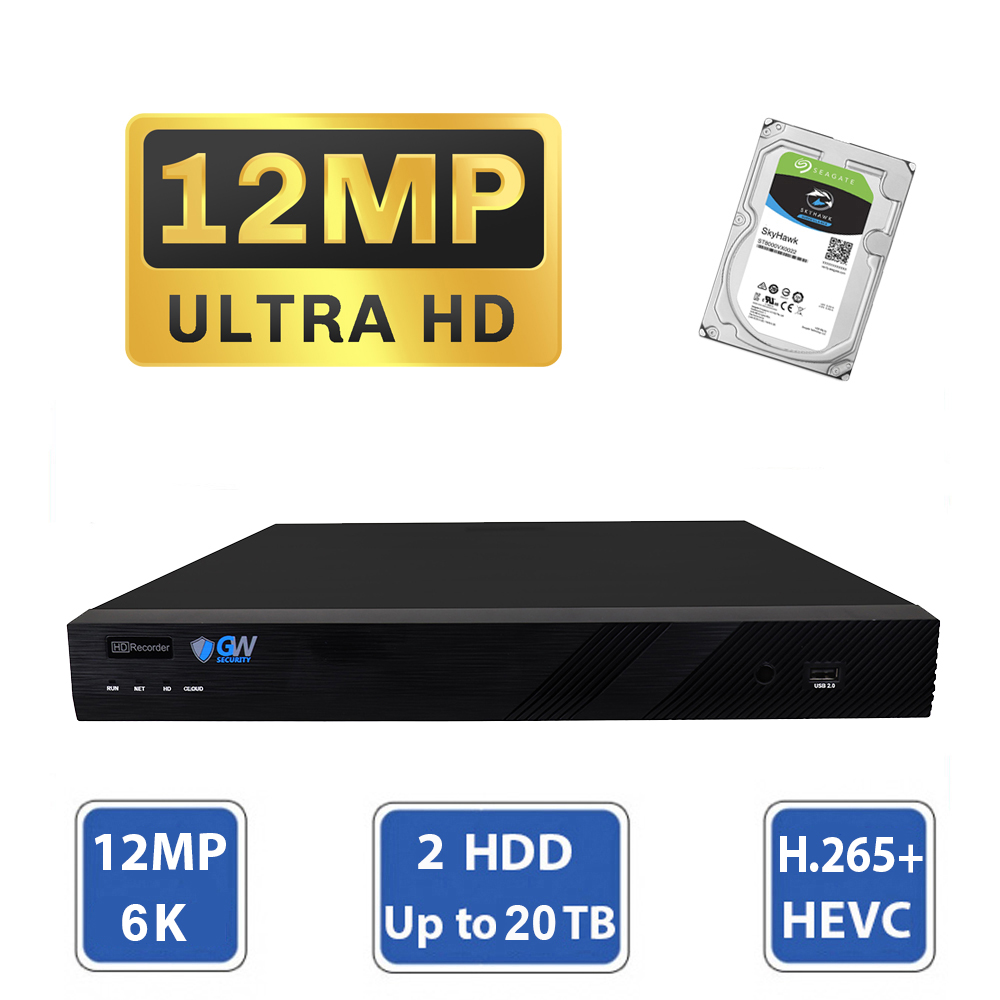

GW Security 16 Channel NVR / Network Video Recorder with 16 ports PoE Switch Built in Supports Up 1

About this item ：

• 16-Channel NVR Supports Up to 12MP/8MP/5MP/4MP/3MP/2MP resolution realtime preview&playback, 1080p @ 30fps Realtime each CH
• 16 Channel POE Switch build-in, supports HDMI and VGA (Maximum HD 4K) output

12.0 Megapixel HD 4000 X 3000P NVR
This 16 Channel NVR works with virtually any ONVIF compatible 8MP/5MP/4MP/3MP/2MP IP camera and after a quick and painless plug-and-play setup process, you can remotely watch things happen as they happen: real-time, highly reliable HD video without loss or delay, transmitted anywhere you have a wireless signal. A new cornerstone in the consumer market for private security technologies and an unsurpassed value with GW Security’s 1 Year Warranty and Free Life Time Tech Support, each NVR is further enhanced by DIY installation and the plethora of features outlined below.

Power Over Ethernet
A single network cable directly connects each IP camera to the NVR supplying both power and a video signal. This time no extra power cable needed just plug one cable for one camera and its on the go. Built-in 16 Ports 10/100 Mbps PoE Switch, which Provides Power & Data Using a Single Ethernet Cable

Feature

• Superb Video Quality and Clarity: Support up to 5MP/3MP/2MP 1080p @ 30fps Realtime each channel

• Support up to 16 ONVIF IP cameras

• With 16 Channel POE Switch build-in, you don’t have to purchase a POE switch which will save your time and money.

• 16CH audio input, 1CH audio output; 2 alarm input, 1 alarm output * 2 USB3.0 ports, 2 SATA2.0 HDD port(up to 6TB each, total 12TB)

• Support HDMI (up to 1920p) and VGA (up to 1080p)

• Support 16 Channel on 1 Screen Preview & simultaneous Playback

• Record in Widescreen, Quick Access QR Code Remote Viewing on iPhone, iPad, and Android (w/ included Free app)

• Remotely Access Using Standard Windows and Mac Browsers

  • Built-P2P service,without any setup,you can achieve internet access
  • Easy to Install: Connect to and Manage All Cameras on Your Network Wirelessly
  • Feature-Rich OSD: Camera Name, Time, Motion Detection, Video Loss, Lock, and Record Status Icons
  • Multiple Trigger/Alarm Events: Recording, PTZ, Tour, Video Push, Email, FTP, and Buzzer
  • Custom Record Modes (e.g. Manual, Scheduled, Motion Detection) and Record Intervals (1-120min)
  • Plug & Play setup, Easy to configure, access and control
  • USB Backup Feature for Peace of Mind

  Include:
  GW6816NP: 16-Channel 12MP NVR
  USB Mouse
  Power Supply
  User Manual

  SERVICES PROVIDE FROM GW:
  • No Hassle 30 Day Returns
  • No Restocking Fee
  • No Handling Fee
  • Free One Year Warranty
  • Free Life Time Tech Support

  SMARTPHONE APP INFO:
  • APP name for both IOS and android: RealView Pro
  • Latest P2P technology, No need apply DDNS, No need port mapping, No need transfer server, Just 3 Step QR code scan.
  • Support Playback on Smartphone.

Rec location：Indoor
Power type：Corded Electric
Wireless：Wireless
Brand：GW Security
Camera type：Video Surveillance Cameras
Number of cameras：16
Compatibility：ONVIF compatible 8MP/5MP/4MP/3MP/2MP IP camera
Color：white
Accessories included：USB Mouse, Power Supply, User Manual
Number of megapixels：12 MP
Input/output type：HDMI
Inputs & outputs：16CH audio input, 1CH audio output, 2 alarm input, 1 alarm output, 2 USB3.0 ports, 2 SATA2.0 HDD port, HDMI, VGA
Input/output quantity：16
Number of channels：16
Model：GW2216E-16P
Input/output direction：Input, Output”}
