About this item ：
-
- Innovative Human & Vehicle Detection – By setting up the human & vehicle detection, you will get motion detection alerts only when people and vehicles are in the frame. Minimizing unwanted alerts triggered by bugs, animals, leaves and so on.
-

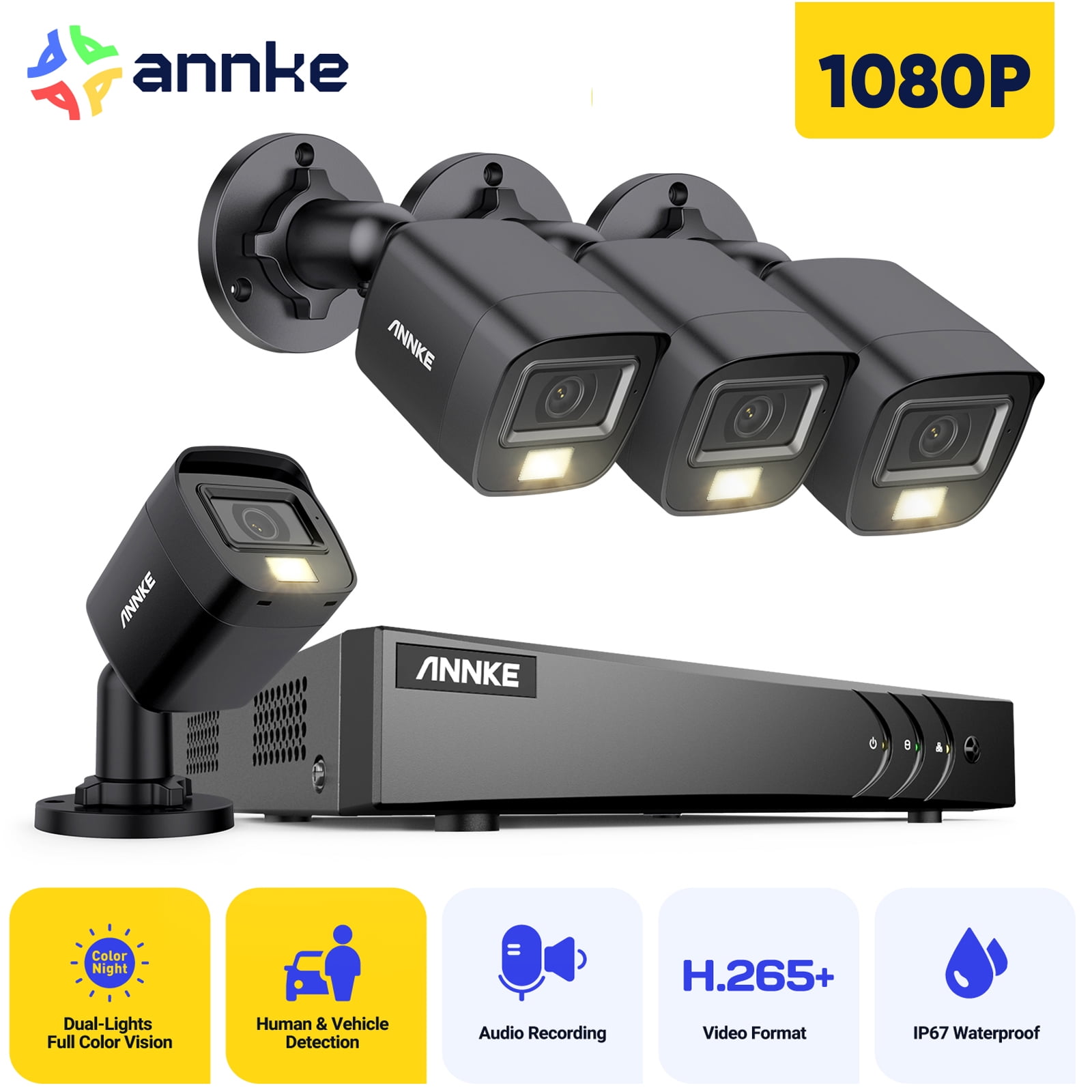

- 1080p Wired Security Cameras & 8 Channel DVR – 4 pcs security cameras deliver the best 1080p live view at 30 fps & up to 100 ft night vision. The advanced sensor & smart IR help capture clear images without noise. The 5-in-1 5MP Lite DVR works with TVI, AHD, CVI, CVBS & IP cameras.
-
- Advanced H.265+ Video Format – H.265+ coding reduces the file sizes and saves the bandwidth greatly. You’ll enjoy a faster & smoother live stream than H.264 systems, without buffering or latency.
-
- All-Around Certifications & Secure App – Every device, including the DVR & cameras, passed the severe testing conducted by authorized organizations, like UL, CE, HDMI, etc. ANNKE App conforms to GDPR, ensuring the video stream is secure in data transferring & downloading.
-
- IP66 Waterproof & Best ABS Housing – The camera, with an IP66 waterproof rating, braves the harshest weather & captures clear images in extremely hot/cold climates. The housing, made from the best ABS materials, provides fast heat dissipation & a long lifespan without fading.
Description:
DVR
“· Up to 3K high definition live viewing
· Up to 3K Lite recording & playback
· Advanced H.265 Pro+ Video Compression
· Support TVI/AHD/CVI/CVBS/IPC input. 5 in 1
· Supports iPhone、iPad、Android mobile remote monitoring
· Deep learning based human and vehicle targets classification of Motion Detection 2.0 for all analog channels
· Quick search by object or event type
· Audio via coaxial cable”
Video Compression: H.264+/H.264/H.265/H.265 Pro+
Video Input: 8CH Analog HD/Analog + 2CH IP Video (up to 12 channel when IP enhanced mode on)
Video Output: HDMI and VGA Up to 1080P
Audio Input: 1-ch RCA, 8-ch via coaxial cable
Audio Output: 1-ch RCA
Max Playback Channel: 8-ch
Hard Drive:
HDD: 1 SATA interface
HDD Capacity: Up to 10TB capacity
External Interface:
Network interface: 1, RJ45 10M/100M self-adaptive Ethernet interface
USB: USB2.0x2
General:
Operating Power: DC12V,≤ 12W (without HDD)
Working Temperature: -14 °F – 131 °F /-10 °C – 55 °C
Dimensions(W x H x D): 260 × 222 × 45 mm (10.2 × 8.7 × 1.8 inch)
Weight (without hard disk) : ≤ 1 kg (2.2 lb)(without HDD)
Analog HD Camera
“High quality imaging with 2 MP, 1920×1080 resolution
3.6 mm fixed focal lens
Up to 20 m IR distance for bright night imaging
Up to 20 m white light distance for bright night imaging
Water and dust resistant (IP67) “
Image sensor: 2MP CMOS Image sensor
Video Resolution: 1920 (H) × 1080 (V)
Signal System: PAL/NTSC
Lens: 3.6mm
Supplement Light type: White Light & IR
Housing: Plastic
Color: Black
Operating Power: DC12V
Operating Temperature: -40 °F – 140 °F /-40 °C – 60 °C
Indoor/Outdoor: Indoor/Outdoor
Weatherproof Rating: IP67
Dimension (L x W x H): 138.8 mm × 60.9 mm × 57.9 mm (5.47″ × 2.4 ” × 2.3″)
Weight: Approx. 155 g (0.34 lb.)
Has night vision：Y
Resolution：FHD (1080P)
Field of view：0 º
Features：Waterproof
Rec location：Indoor and Outdoor
Power type：Corded Electric
Brand：ANNKE
Lens type：Fixed Lens
Number of cameras：4
Compatibility：iPhone, iPad, Android
Color：Black
Number of megapixels：2 MP
Assembled product height：8.7 in
Assembled product weight：3.56 lb
Input/output type：HDMI, RCA
Inputs & outputs：HDMI and VGA Up to 1080P
Input/output quantity：8
Number of channels：7
Connector type：RJ45
Has written warranty：No
Has nrtl listing certification：N
Piece count：5
Model：AU-DW81KT0-OP-C54EF
Input/output direction：Input, Output”}
